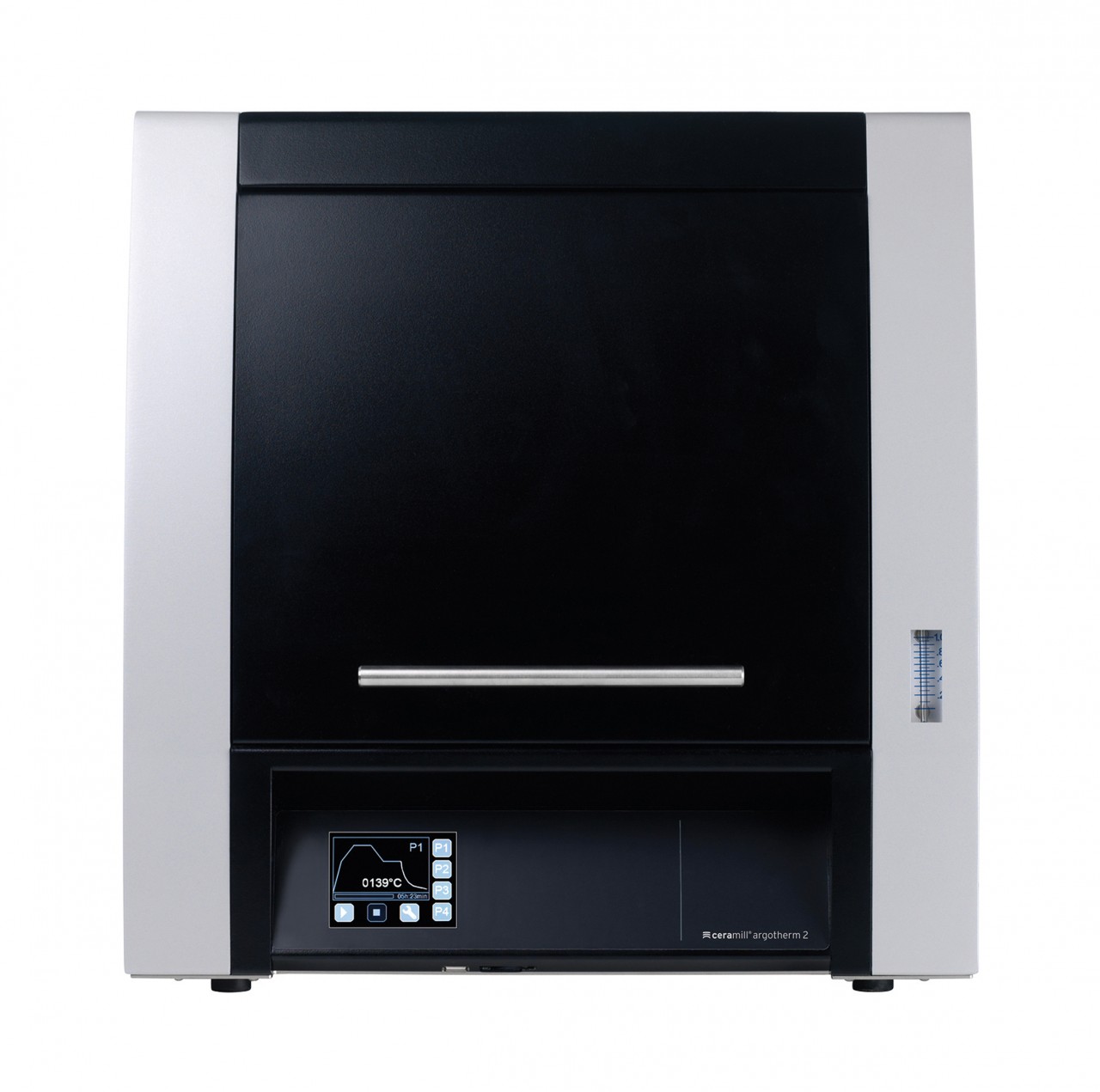

Amann Girrbach Ceramill Argotherm 2

Amann Girrbach Ceramill Argotherm 2

The CoCr sintering furnace Ceramill Argotherm 2 is an integral part of a system with optimally coordinated components for processing the sinter metal Ceramill Sintron. Only the perfect adaptation of sinter metal, processing in the CAD/CAM system and completion in the sintering furnace ensure consistently high material quality – especially if it involves the mechanical properties and (micro-) structure of the finished restoration. Easy to operate at the press of a button, the Ceramill Argotherm 2 controls the sinter program of the milled CoCr units.

The “core” of the system, the removable Ceramill Argovent sinter chamber, ensures minimal consumption of argon gas and homogeneous, distortion-free sintering of the restorations. Fitted with a touchscreen and a clearly structured display for the optical control of the sintering process, the Argotherm 2 offers greater convenience in terms of operation and handling. The compact furnace with minimum space requirements is used as a table-top model and cools down actively after sintering.

Features:
– Sintering program developed specifically for Ceramill Sintron
– A validated system guarantees consistent high quality of the results
– Active cooling after the sintering process
– Minimal consumption of protective gas
– Sintering at the push of a button – extremely easy operation with touch screen technol-ogy
– USB interface for program updates and log files for monitoring firing

Specifications:
– Dimensions: 468 x 461 x 480 mm
– Weight: 30 kg
– Electrical connected value: V/Hz 220-240/50-60- Power Output: 3,5 kW
– Fuse (time-delayed): A 15
– Degree protection – IP20
– Thermal protection class according to DIN EN 60519-2: Class 0

Package Includes:
– Sinter Base
– Sintering Tray
– Siner Hood
– Shielding Gas Retort
– Sinter Beads
– Argovent 2 Tongs
