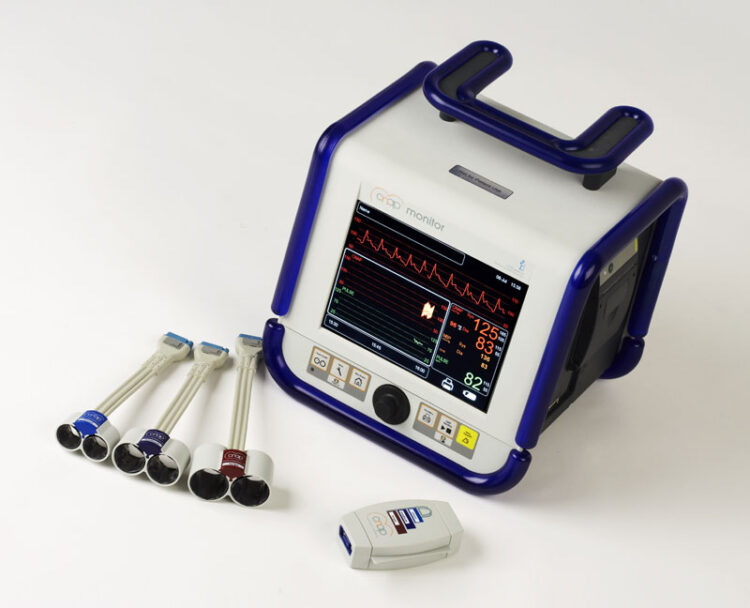

CNAP Monitor 500 HD

The CNAP Monitor 500 HD is an advanced hemodynamic monitoring system designed to provide continuous, non-invasive measurement of blood pressure and cardiovascular parameters with hospital-grade accuracy. Combining innovative CNAP technology with a compact and user-friendly interface, the system delivers real-time hemodynamic data to support critical clinical decision-making.

Engineered for precision and reliability, the CNAP Monitor 500 HD offers continuous arterial pressure monitoring, heart rate, stroke volume, cardiac output, and other key hemodynamic metrics without the need for invasive catheterization. Its high-definition display provides clear, intuitive visualization of trends and real-time waveforms, enabling clinicians to respond promptly to patient condition changes.

Ideal for use in operating rooms, intensive care units, and perioperative settings, the CNAP Monitor 500 HD integrates seamlessly with hospital information systems, enhancing workflow efficiency and patient safety. Compact, portable, and easy to set up, it supports both short-term and long-term monitoring while maintaining the highest standards of accuracy and clinical performance.

Key Features

Continuous Non-Invasive Blood Pressure Monitoring – Provides real-time arterial pressure without invasive catheterization.

Comprehensive Hemodynamic Parameters – Measures heart rate, stroke volume, cardiac output, and more.

High-Definition Display – Intuitive visualization of trends, real-time waveforms, and alerts.

Hospital-Grade Accuracy – Clinically validated CNAP® technology for precise measurements.

Compact and Portable Design – Easy to move between operating rooms, ICUs, and perioperative settings.

Seamless System Integration – Compatible with hospital IT systems for data logging and electronic records.

User-Friendly Interface – Simplified setup and navigation for rapid clinical use.

Continuous Trend Analysis – Long-term monitoring and trend display for proactive patient management.

Multi-Parameter Monitoring – Supports additional parameters for advanced hemodynamic assessment.

Safe and Comfortable for Patients – Non-invasive, cuff-based technology minimizes discomfort.

Technical Specifications

Measurement Capabilities

Blood Pressure: Continuous non-invasive arterial pressure (CNAP® technology)

Heart Rate: 30 – 250 bpm

Cardiac Output: Continuous measurement via pulse contour analysis

Stroke Volume: Calculated continuously

Mean Arterial Pressure (MAP): Real-time display and trend

Additional Parameters: Pulse pressure variation (PPV), systemic vascular resistance (optional)

Display & Interface

Screen Type: High-definition color touchscreen

Waveform Display: Real-time arterial pressure waveform and trends

Alerts & Alarms: Adjustable thresholds for hemodynamic parameters

User Interface: Intuitive menu with quick access to settings and patient data

Connectivity & Integration

Data Export: HL7, USB, and network integration for electronic medical records

Integration: Compatible with bedside monitors, anesthesia machines, and hospital IT systems

Physical & Environmental

Dimensions (L×W×H): 280 × 200 × 100 mm (approx.)

Weight: ~3 kg

Power Supply: 100–240 V, 50/60 Hz

Battery Operation: Optional battery for portable use (up to 2 hours)

Operating Temperature: 10–40 °C

Storage Temperature: –20–60 °C

Humidity: 20–80 % non-condensing

Safety & Comfort

Non-Invasive Technology: Cuff-based continuous monitoring

Patient Safety: Automatic calibration and error detection

Ergonomics: Comfortable cuff design suitable for long-term monitoring
