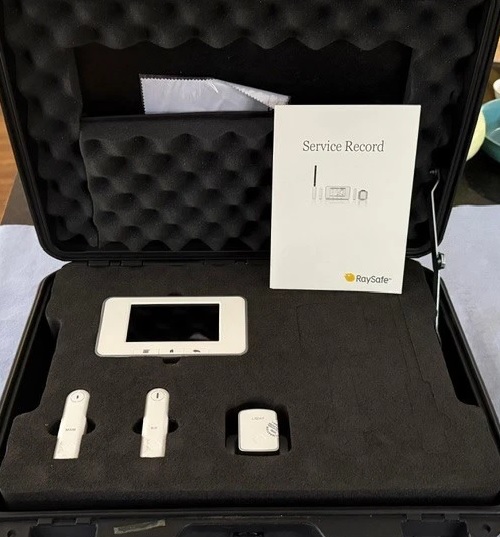

RaySafe X2 Base Unit and Sensors
The RaySafe X2 is a modular X-ray measurement system for quality assurance and service testing of diagnostic X-ray equipment. It consists of a base unit interchangeable smart sensors and RaySafe View PC software. You choose the sensors you need today and add more later with no range or mode selection required.
Key features of the RaySafe X2 base unit
- Large touchscreen: A 4.3″ capacitive touch LCD shows results, waveforms and trends directly on the unit, with no computer needed.
- Automatic sensor recognition: The base unit identifies the connected sensor and configures itself.
- One exposure needed: The system is designed to capture the required parameters from a single exposure.
- Built-in memory: It stores roughly the 10,000 most recent exposures.
- Rechargeable battery: The Li-ion battery lasts about 10 hours of intensive use.
- Data analysis: RaySafe View handles data and reporting and exports results to Microsoft Excel.
- Standards: The X-ray meters comply with IEC 61674.
Compatible RaySafe X2 sensors
| Sensor | Typical use |
|---|---|
| R/F Sensor | kV, dose and dose rate, HVL and waveforms for radiography and fluoroscopy |
| MAM Sensor | Mammography dose, HVL and kV measurements |
| CT Sensor | Ionization chamber for CT dose measurements |
| Light Sensor | Luminance and illuminance for monitors and viewing conditions |
| Survey Sensor | Area and scatter radiation surveys |
| Volt Sensor | Non invasive kV, mA and mAs measurement from generator voltage |
| DENT Sensor | Dental X-ray measurements |
List only the sensors you stock. The X2 Solo is a version with limited sensor functionality.
Technical specifications (base unit)
| Specification | RaySafe X2 Base Unit |
|---|---|
| Display | 4.3″ LCD, capacitive touch |
| Size | 34 × 85 × 154 mm (1.3 × 3.3 × 6.1 in) |
| Weight | 521 g (18.4 oz) |
| Power | Rechargeable Li-ion battery, about 10 hours intensive use |
| Memory | About 10,000 latest exposures |
| Operating temperature | 15-35 °C (59-95 °F) |
| Storage temperature | -25-70 °C (-13-158 °F) |
| USB cables | 2 m, 5 m and 5 m active extender |
| Software | RaySafe View (Excel export) |
| Standards | IEC 61674 (X-ray meters), IEC 61010-1 (safety), IEC 61326-1 (EMC) |
| PTB certificate | DE-17-M-PTB-0053 |
| Sensor ranges and accuracy | [see sensor datasheets: verify for each sensor sold] |
