CNAP Monitor 500 HD New

CNAP Monitor 500 HD

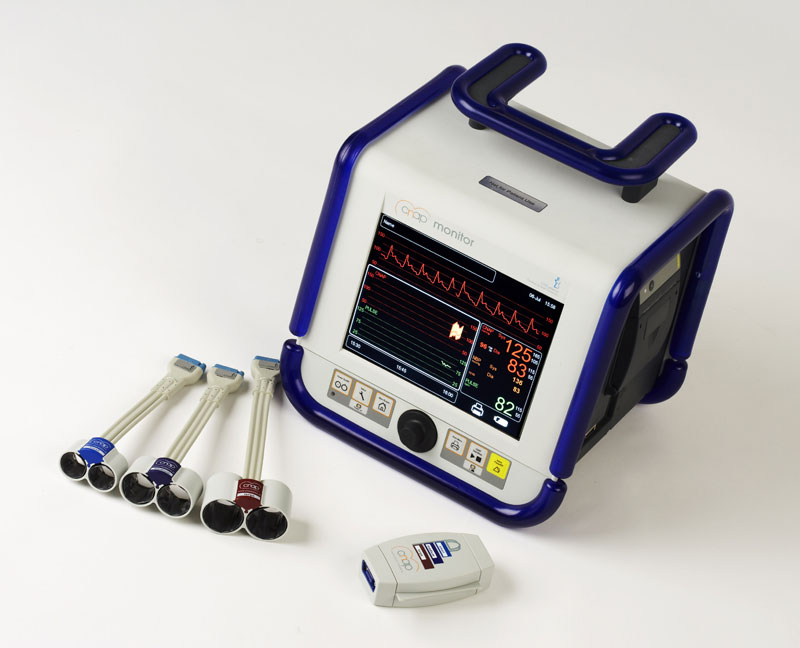

The CNAP Monitor 500 HD is a cutting-edge, continuous non-invasive blood pressure and hemodynamic monitoring system designed for clinical and research environments. Utilizing advanced CNAP Volume Clamp technology, it provides beat-to-beat monitoring of blood pressure, cardiac output, and other key cardiovascular parameters with accuracy comparable to invasive methods — all without the need for arterial lines or catheters.

Core Functionality

The system delivers real-time cardiovascular insights, enabling clinicians to track systolic, diastolic, and mean arterial pressure, pulse rate, and derived hemodynamic parameters such as cardiac output (CO), cardiac index (CI), stroke volume (SV), and systemic vascular resistance (SVR). This makes it invaluable for perioperative care, ICU monitoring, emergency care, and research applications, supporting rapid and informed clinical decisions.

Key Features

• Continuous Non-Invasive Monitoring: Beat-to-beat arterial pressure without invasive lines.

• Advanced Hemodynamics: Real-time cardiac output, stroke volume, and vascular resistance measurements.

• Fluid Responsiveness Assessment: Measures pulse pressure variation (PPV) and stroke volume variation (SVV) to guide fluid management.

• Rapid Setup: Quick and intuitive finger-cuff application; automatic calibration to upper-arm blood pressure.

• User-Friendly Interface: High-resolution color display with trend graphs, alarms, and intuitive controls.

• Connectivity: Analog waveform output, USB data transfer, and integration with hospital monitoring systems.

• Portable and Safe: Lightweight design with rechargeable battery; BF-applied part protection ensures patient safety.

Clinical Benefits

• Enables optimized fluid and hemodynamic management during surgery or critical care.

• Reduces risk of infection, bleeding, and arterial injury associated with invasive monitoring.

• Supports goal-directed therapy (GDT) protocols and enhanced surgical recovery strategies.

• Provides a reliable research tool for studies in physiology, anesthesia, and cardiovascular medicine.

Technical Highlights

• Blood Pressure Range: SYS 40–250 mmHg, DIA 30–210 mmHg, MAP 35–230 mmHg

• Pulse Rate: 30–200 bpm

• Hemodynamic Range: CO 0–99.9 L/min, SV 0–500 mL, SVR 0–9999 dyne·s/cm⁵

• Display: 8.4″ TFT-LCD, 800×600 resolution

• Battery Life: ~2 hours; integrated thermal printer for on-demand reports

• Safety Standards: IEC 60601, ISO 81060-2; BF-applied part protection

Summary

The CNAP Monitor 500 HD is a versatile, accurate, and patient-friendly monitoring solution that provides continuous, real-time cardiovascular data. Its combination of non-invasive technology, advanced hemodynamic parameters, and intuitive usability makes it an essential tool for modern healthcare environments and clinical research.
