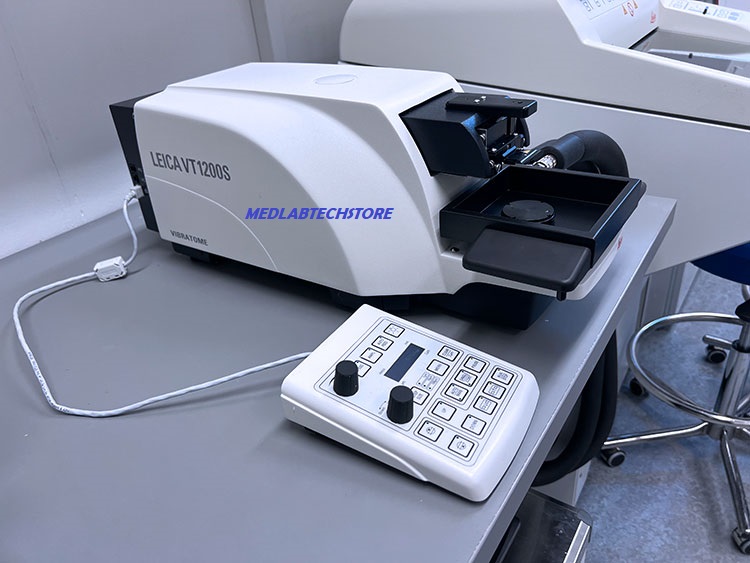

Leica VT 1200 S Vibrating Blade Microtome
The leica vt1200s vibratome precision instrument designed for high quality sectioning of fresh fixed or frozen biological tissues. Renowned for its stability reliability and ergonomic design this microtome delivers consistently smooth and uniform sections making it ideal for histology neuroscience and advanced research applications.
vibratome leica with a robust vibrating blade mechanism the leica vibratome vt1200s minimizes mechanical stress and tissue distortion enabling precise sectioning at thicknesses ranging from a few micrometers to several hundred micrometers. Its intuitive controls flexible angle adjustments and modular design allow researchers to optimize sectioning for a variety of specimen types from delicate brain slices to robust organ tissues.
The leica vibrating sectioning also integrates advanced safety features and easy to use sample handling components improving workflow efficiency and reducing the risk of errors during preparation. Compatible with a wide range of accessories the Leica VT 1200S supports both routine laboratory work and sophisticated experimental protocols ensuring reproducibility and high quality results every time.
Key Features
Precision Vibrating Blade Mechanism – Ensures smooth uniform sections with minimal tissue distortion.
Wide Sectioning Range – Capable of cutting sections from a few micrometers up to several hundred micrometers.
Ergonomic Design – Adjustable controls and comfortable operation for prolonged use without fatigue.
Versatile Specimen Handling – Supports fresh, fixed, and frozen tissues for diverse research applications.
Stable and Robust Construction – Reduces vibrations and mechanical stress during sectioning.
Flexible Blade and Angle Adjustment – Allows optimal cutting for delicate or tough tissue samples.
Safety Features – Integrated guards and safety switches to protect users during operation.
Modular Accessories – Compatible with a wide range of specimen holders, knives, and other accessories.
High Reproducibility – Ensures consistent section quality across multiple samples and experiments.
Application Versatility – Ideal for histology, neuroscience, pathology, and advanced tissue research.
Technical Specifications
Sectioning
Section Thickness: 10 µm – 500 µm (standard range)
Sectioning Mode: Vibrating blade for minimal tissue distortion
Maximum Specimen Size: Up to 60 mm (width) × 50 mm (length) × 50 mm (height)
Sectioning Speed: Adjustable, 0.1 – 3 mm/s
Vibration Frequency: 0 – 90 Hz adjustable
Blade and Knife System
Blade Type: Disposable or reusable stainless steel blades
Blade Angle Adjustment: ± 30° for optimal cutting
Blade Holder: Quick release compatible with standard microtome blades
Specimen Handling
Specimen Orientation: Multi axis positioning for precise alignment
Specimen Holders: Supports fresh, fixed, and frozen tissue blocks
Cooling Options: Optional Peltier cooling stage for frozen samples
Operation & Controls
Control Interface: Intuitive touch screen or manual dial controls
Ergonomic Design: Adjustable handwheel and operating height
Programmed Sectioning: Step and repeat sectioning modes
Safety Features: Integrated blade guard, emergency stop, and lockable controls
Dimensions & Power
Footprint: Approx. 600 mm × 400 mm × 400 mm
Weight: ~35 kg
Power Supply: 100-240 V, 50/60 Hz, 120 W
Accessories & Compatibility
Optional Accessories: Various specimen holders, cooling stages, and blade types
Integration: Compatible with histology and imaging workflows
